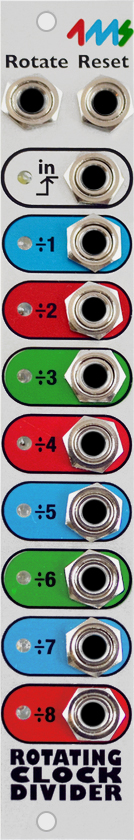

| Rotating Clock Divider [RCD] |
The Rotating Clock Divider (RCD) produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.
Basic Features:
- Divide-by-1 to Divide-by-64, on 8 output jacks
- CV Rotate jack to shift divide-by amount on each jack
- CV Reset jack to reset/re-sync all jacks
- Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)
- Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
- CV Rotate (0V to +5V input)
- CV Reset (5V to 15V trigger)
- Divided Clock Outputs (8 jacks):
- Divide-by-(1+R)
- Divide-by-(2+R)
- Divide-by-(3+R)
- Divide-by-(4+R)
- Divide-by-(5+R)
- Divide-by-(6+R)
- Divide-by-(7+R)
- Divide-by-(8+R)
- Selectable Gate/Trigger mode:
- Selectable Divide range up to Divide-by-64:
Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel. - Selectable Auto-reset:
Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
Electrical and Mechanical Specifications:
- Module size:
- 4 HP Eurorack format module
- 1.39" (35mm) deep
- Power consumption:
- 5VSEL Jumper set to INT:
- 33mA maximum power draw from +12V rail
- 0mA max on the +5V rail
- 4mA maximum power draw on the -12V rail
- 5VSEL Jumper set to EXT:
- 19mA maximum power draw on the +12V rail
- 14mA max on the +5V rail
- 4mA maximum power draw on the -12V rail
- 16-to-16 pin power cable
- 2 M3 Knurlie screws
Warning: file_get_contents(): https:// wrapper is disabled in the server configuration by allow_url_fopen=0 in /home/fourmsmodular/public_html/funcs.php on line 171
Warning: file_get_contents(https://vimeo.com/api/v2/video/17142094.php): failed to open stream: no suitable wrapper could be found in /home/fourmsmodular/public_html/funcs.php on line 171
Warning: file_get_contents(): https:// wrapper is disabled in the server configuration by allow_url_fopen=0 in /home/fourmsmodular/public_html/funcs.php on line 171
Warning: file_get_contents(https://vimeo.com/api/v2/video/17142568.php): failed to open stream: no suitable wrapper could be found in /home/fourmsmodular/public_html/funcs.php on line 171
User Manuals:
- User Manual Version 1.2for black PCB, shipped 2015 and later
- User Manual Version 1.1 for old versions with green PCB
- RCD Breakout connection guide
- How to Update your own RCD by yourself: Download the hex file below. Then follow these instructions: Updating Firmware on AVR chips
- Version 1.1 (2012 April 24) for PCB 1.0.2, 1.0.3, and 1.0.4: hex file (adds Spread mode)
- Old Version 1.0.2 for PCB 1.0.1 and up: hex file
- Old Version 1.0.2 for PCB 1.0: hex file
- 4ms RCD github: Always the latest version, as well as other clocker verisons (Tracking Gate Sequencer, DinSync SCM, etc...): 4ms github
