QCD Expander [QCDEXP]

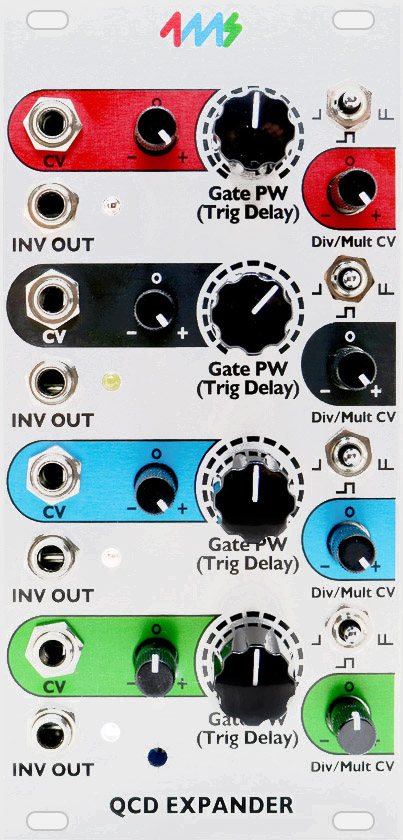

The QCD Expander is an expansion module for the Quad Clock Distributor (QCD).

The QCD Expander adds a host of features, turning the QCD into a programmatic non-linear sequencer. Each channel gets a CV Trigger Delay (Pulse Width) jack and knob, an additional output jack with three selectable modes, and attenuverters for all CV input jacks. Self-patched evolving rhythms and swing/shuffle patterns are easily obtained, as well as complete control over standard rhythmic patterns.


$199.00


Basic features:

  • Connects to QCD module with a 16-conductor ribbon cable (included)
  • More features are added to each QCD channel:
    • Multi-mode output jack INV OUT mirrors the tempo of main QCD output
    • Mode Switch for each INV OUT jack:
      • Delayed Trigger Mode
      • Inverted Gate Mode
      • Shuffle Mode (delayed + original trigger)
    • PW/Delay knob controls trigger delay time on INV OUT jack (or pulse width in Inverted Gate Mode)
      • Also controls Pulse Width of main QCD OUT jack
      • CV input jack for external control
      • Attenuverter allows for one channel to precisely modulate another channel's delay or pulse width
    • Div/Mult CV attenuator knob
      • Controls how much the signal on the main QCD's Div/Mult CV jack will modulate the tempo
      • Useful for precisely modulating the speed of one channel with another
  • Global LED brightness can be adjusted from the front panel

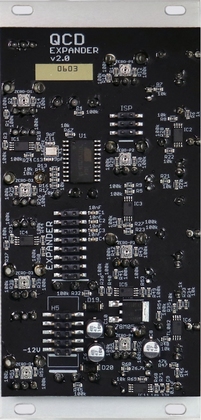

Electrical and Mechanical Specifications:

  • Module size:

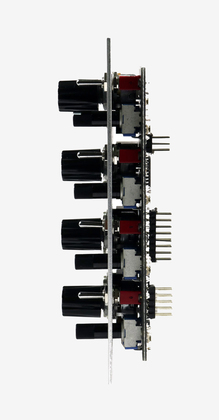

    • 12 HP Eurorack format module
    • 0.98" (25mm) deep
  • Power consumption:
    • +12V rail: 44mA max
    • +5V rail: not used
    • -12V rail: 30mA max
Included with the QCD Expander:
  • 10-to-16 pin power cable
  • 16-to-16 pin power cable (to connect to QCD)
  • 4 M3 Knurlie screws




−
