Pods are a perfect way to get started in Eurorack, or add more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 2.0A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods sized at 64hp and below are also available unpowered)

Each Pod104X typically will house up to 13 modules, but more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy-chain with the 4ms Row Power system, making them a convenient outboard skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

• 104 HP of Eurorack modular space
• Extra room for deep modules
• Standard M3 threaded holes
• 100% lightweight anodized aluminum
• Built-in Power supply
• Red, White, and Blue LED power indicators
• Power on/off switch

Includes:

• 104HP Pod, black anodized aluminum

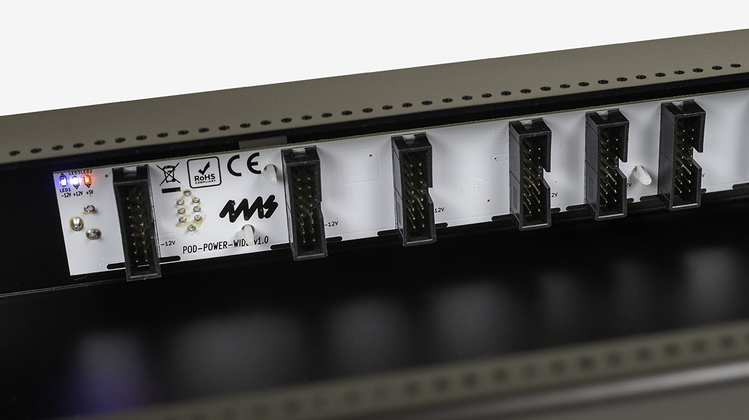

• Built-in power supply with 13 Eurorack power headers
• Extra deep (2.16"/55mm) size fits virtually every Eurorack module
• M3 x 8mm pan-head screws, stainless steel (40)
• Adhesive rubber feet (4)
• Does not include barrel cable or power brick

Power Supply:

• Thirteen 16-pin Eurorack power shrouded headers
  • +12V max 2.0A (1.5A recommended)
  • -12V max 1.4A (1.0A recommended)
  • +5V max 1.5A (1.2A recommended)

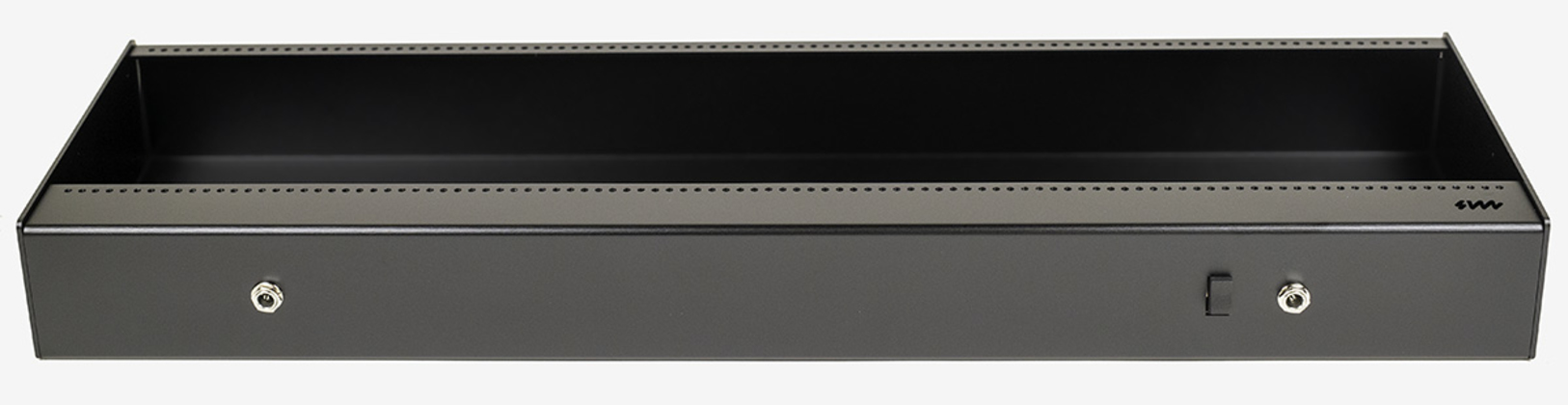

• Power input: Two barrel jacks for daisy-chaining
  • 15V-20VDC recommended, 24VDC maximum, 2.1mm positive tip
  • Power Brick 90W or Power Brick 45W recommended

• Width: 534mm (21")
• Height: 159mm (6.3")
• Depth: 57mm (2.2")

• Max module depth: 55mm (2.16")
• Module width: 528mm (20.8"), 104HP

• 35.9 oz

• Pod104X User Guide
• Pod User Guide (all sizes)
