RCD Breakout [RCDBO]

The RCD Breakout adds features to the Rotating Clock Divider module.

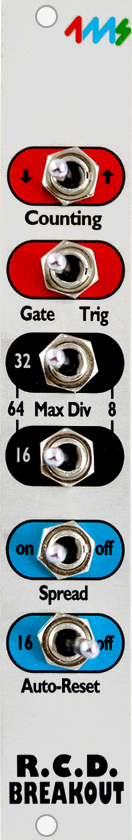

Six switches allow you to set the maximum Divide-by amount, Gate or Trigger mode, Counting mode, Spread mode, and Auto-Reset. The RCD Breakout requires the RCD to function, and does not use any extra power.


$95.00


Basic Features:

  • Gate Counting: Down/Up
  • Gate/Trigger mode
  • Divide range up to Divide-by-64
  • Spread mode: Spread mode causes the output to "spread" evenly amongst the entire max division range (see manual).
  • Auto-reset: 16/off

Electrical and Mechanical Specifications:

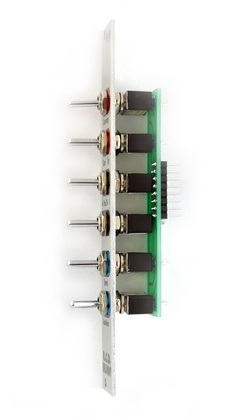

  • Module Size:
    • 4HP Eurorack fromat module
    • 1.85" (48mm) deep
  • Power consumption:
    • +12V rail: __mA
    • +5V rail: not used
    • -12V rail: not used
Included with the RCDBO:
  • 16-to-16 pin power cable
  • 2 M3 Knurlie screws

User Manuals: DIY Panel Templates: Latest Firmware code:
  • How to Update your own RCD by yourself: Download the hex file below. Then follow these instructions: Updating Firmware on AVR chips
  • Version 1.1 (2012 April 24) for PCB 1.0.2, 1.0.3, and 1.0.4: hex file (adds Spread mode)
  • Old Version 1.0.2 for PCB 1.0.1 and up: hex file
  • Old Version 1.0.2 for PCB 1.0: hex file
  • 4ms RCD github: Always the latest version, as well as other clocker verisons (Tracking Gate Sequencer, DinSync SCM, etc...): 4ms github
If you don't want to buy the AVR ISP mkII and update your RCD yourself, you can purchase one from 4ms directly here




−
